From 125 to 201 horse powers with automatic or hydrostatic gearbox

– Finnish Sisu Diesel engine 145-185HP
– hydrostatic gearbox
– LOAD SENSING pump 115L/min
– Nokian professional forestry tires
– reinforced rims of the renowned manufacturer GKN
– cabin protection
– roof protection
– protection of rear and rear side windows
– door protection

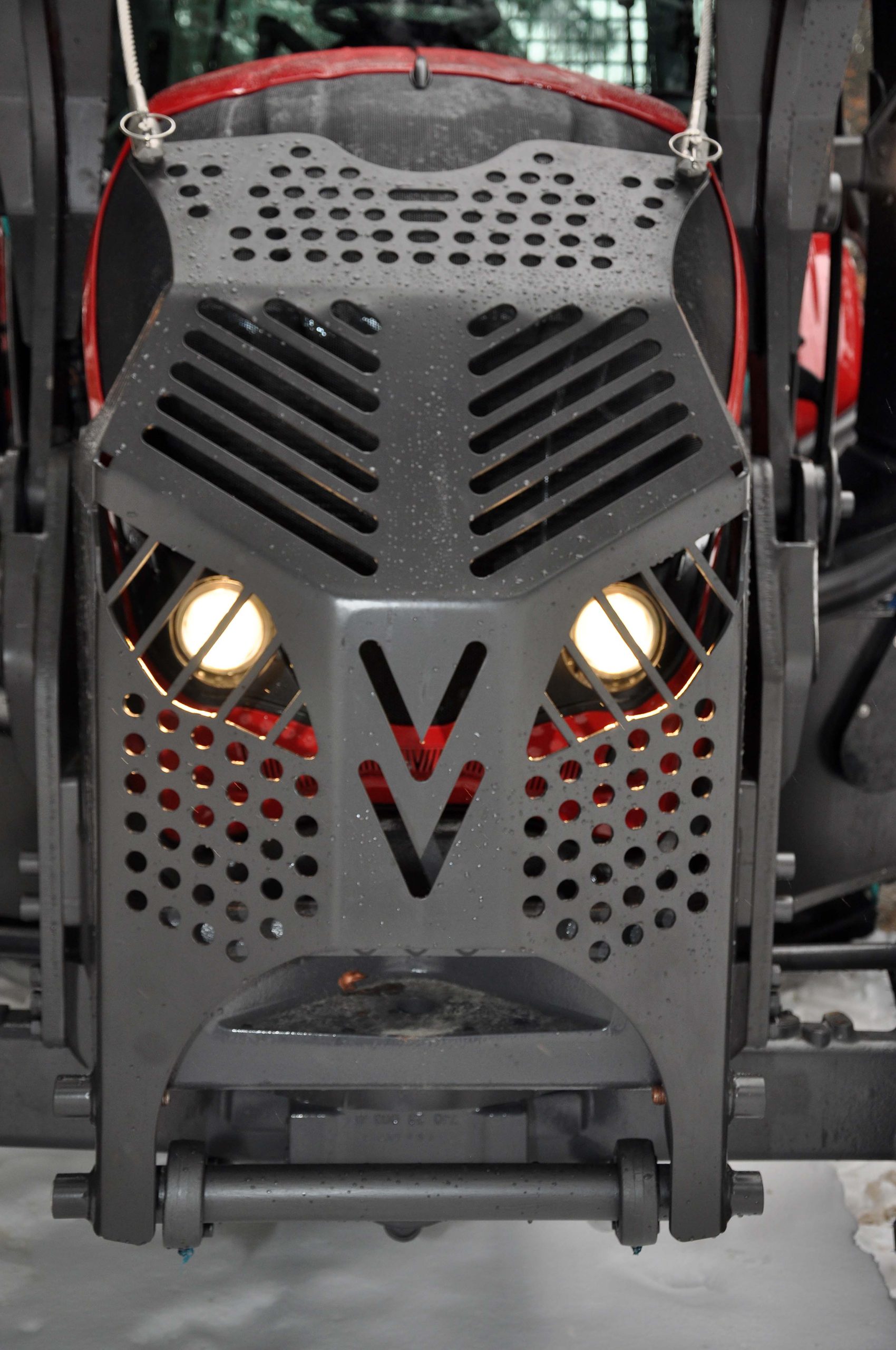

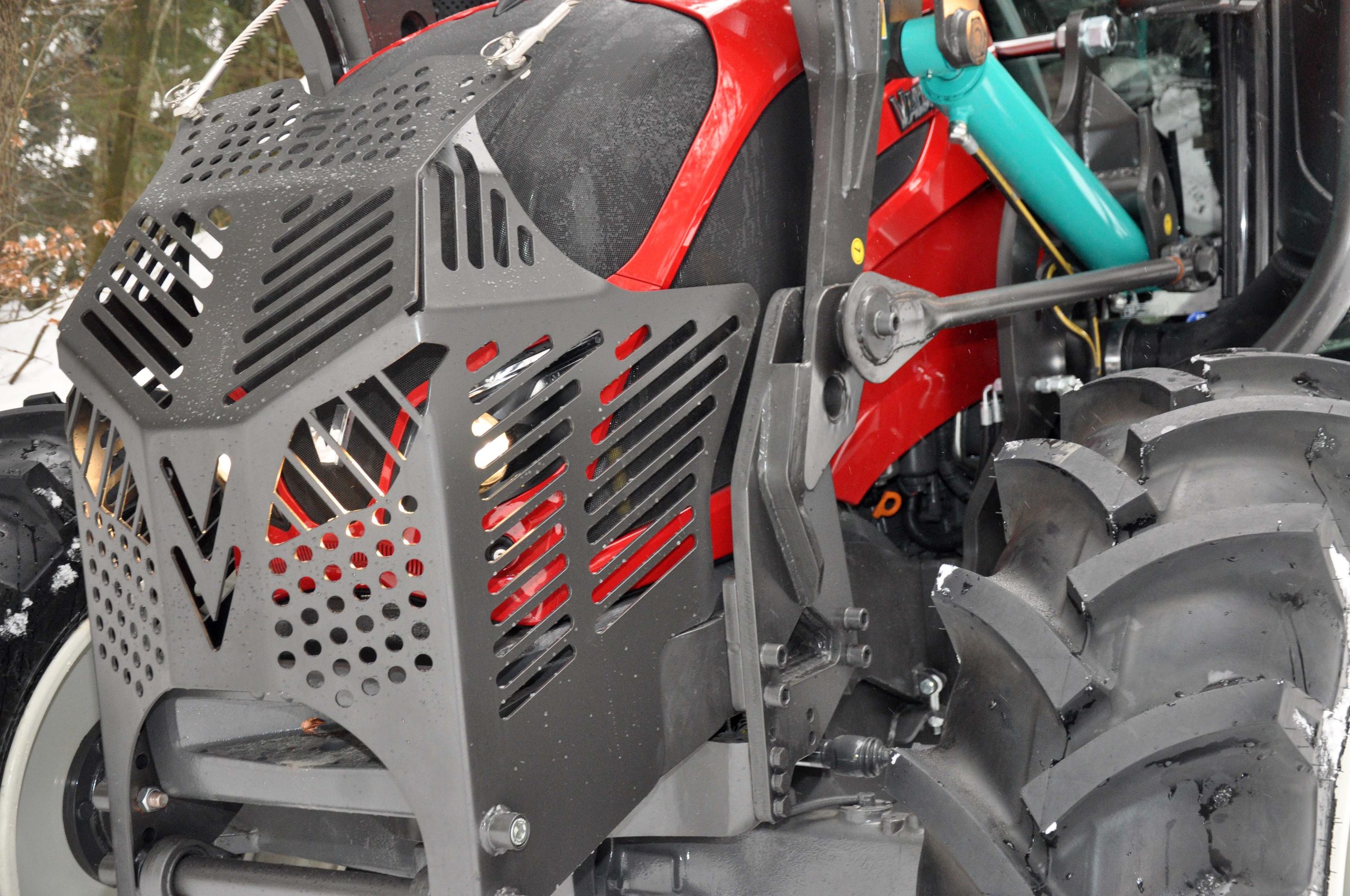

– protection of the front and side of the motor
– connecting chassis and underbody protection made of 20 mm thick sheet metal with openings for easier servicing

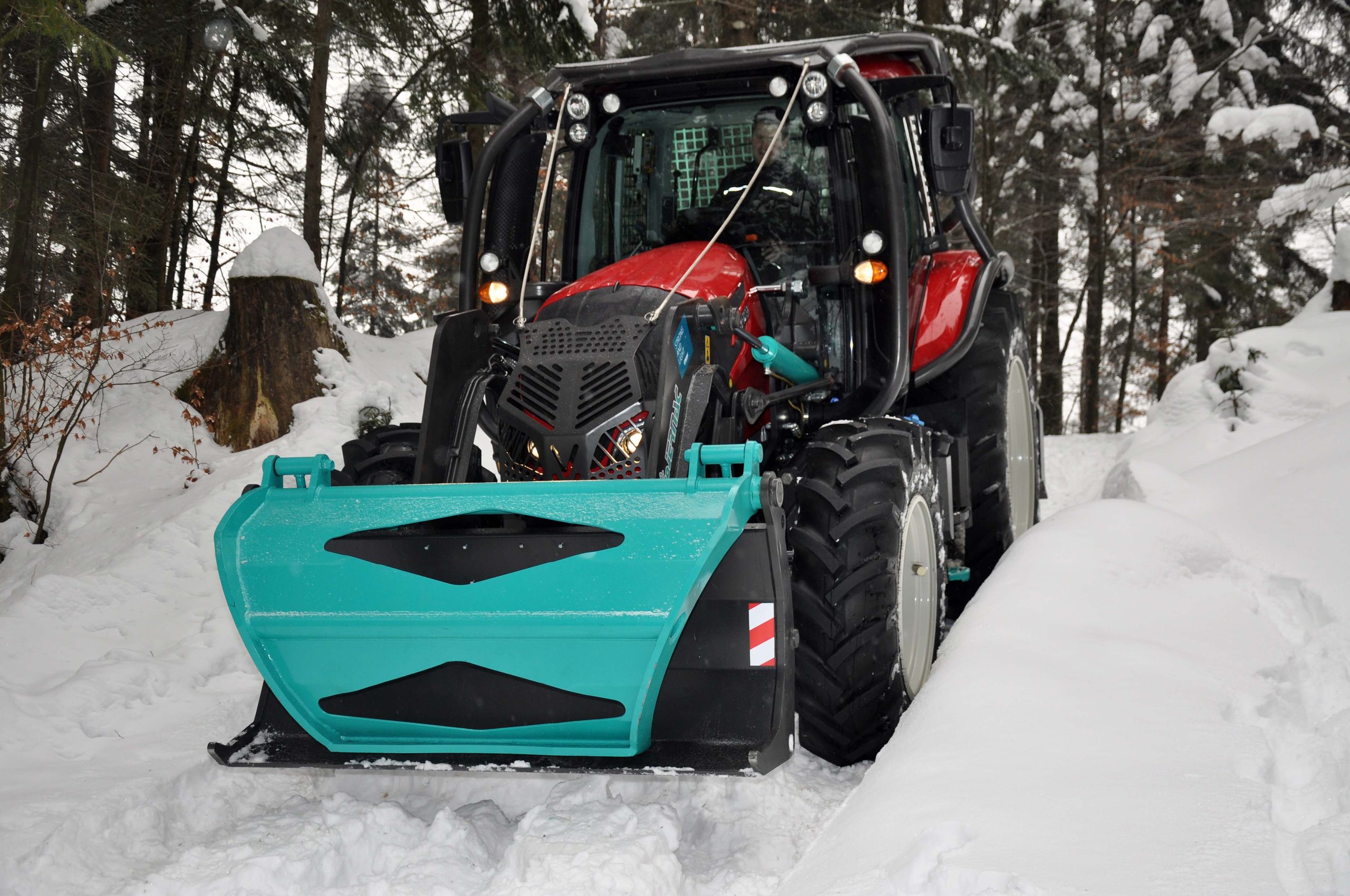

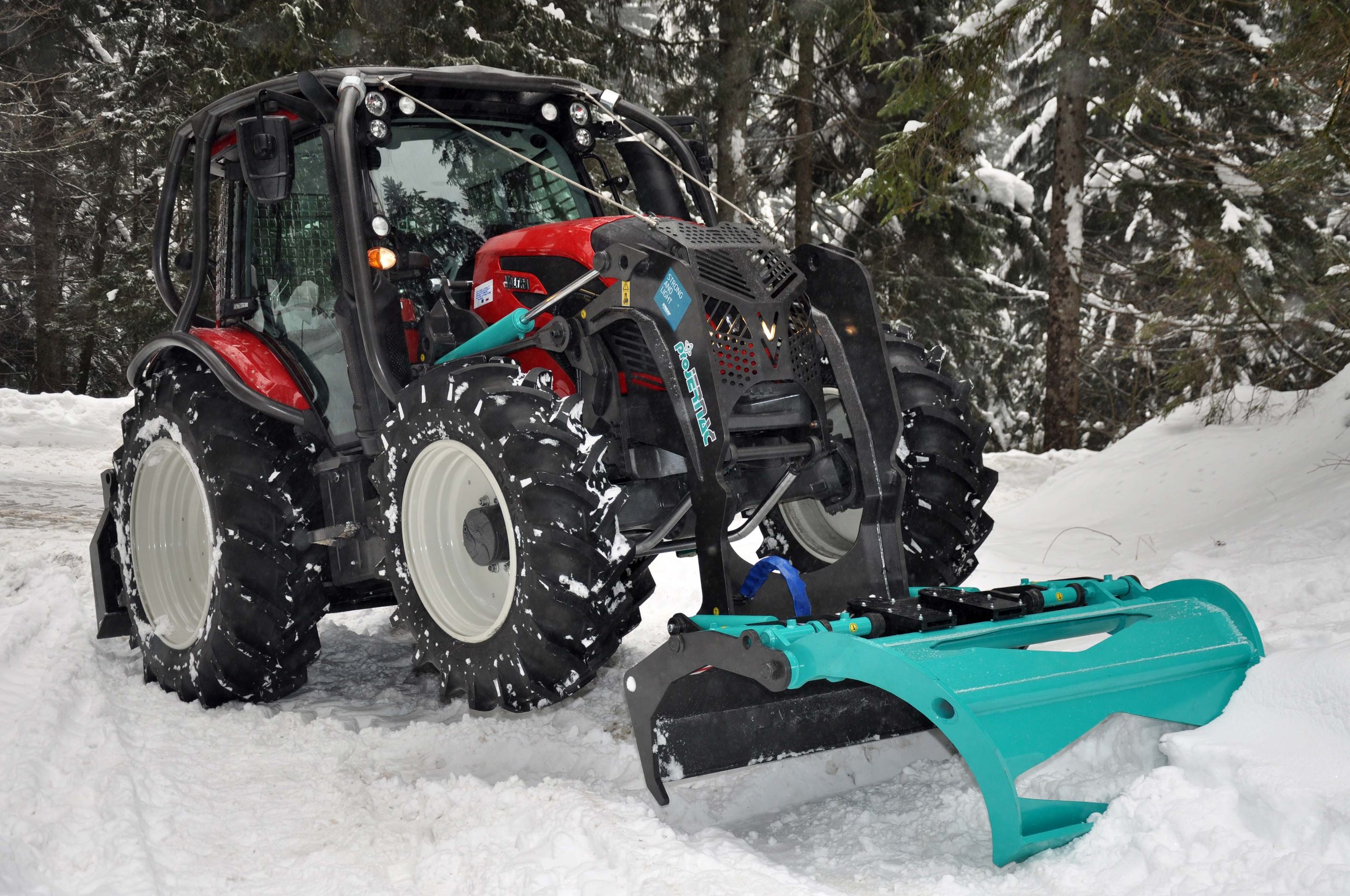

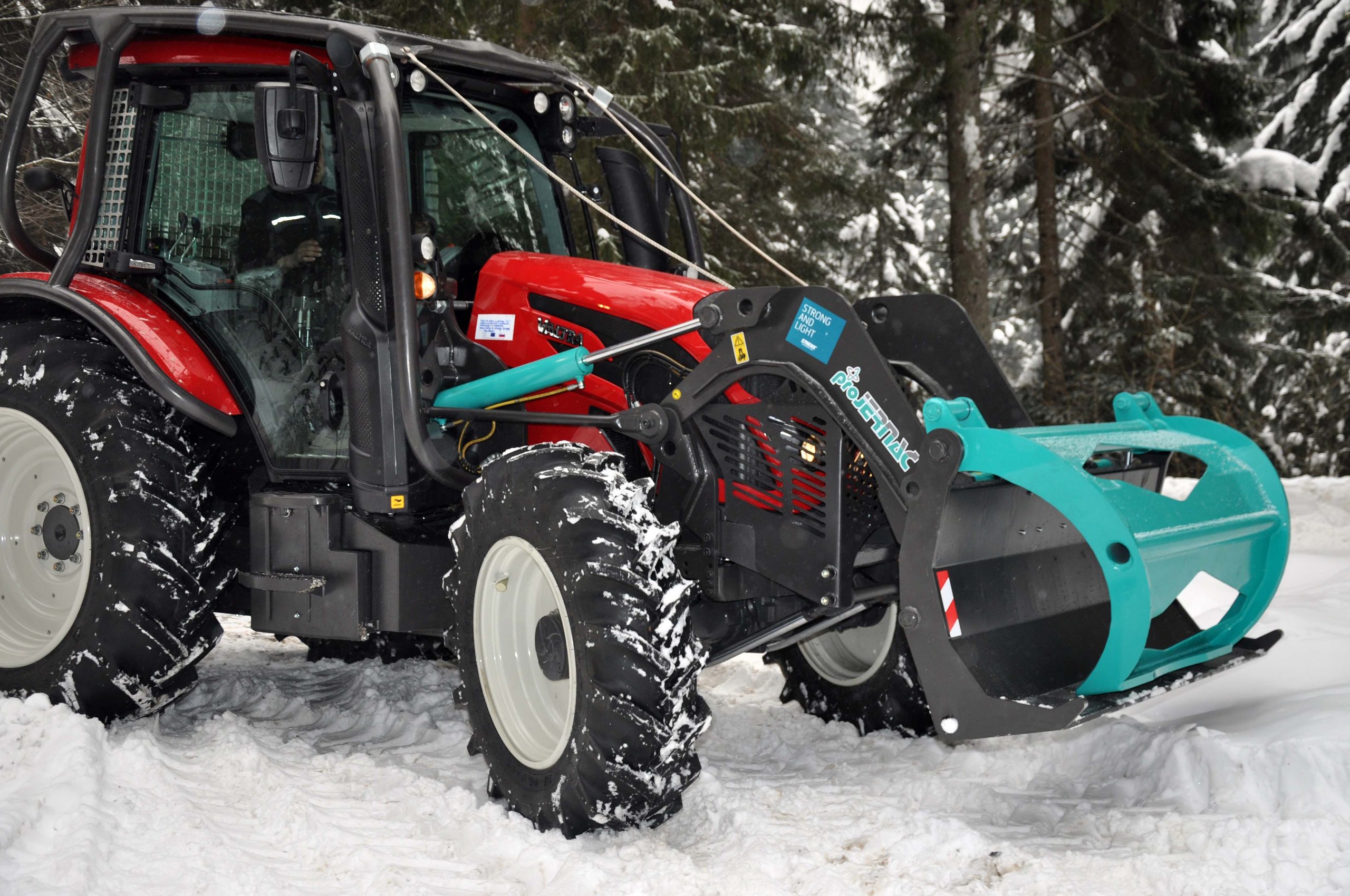

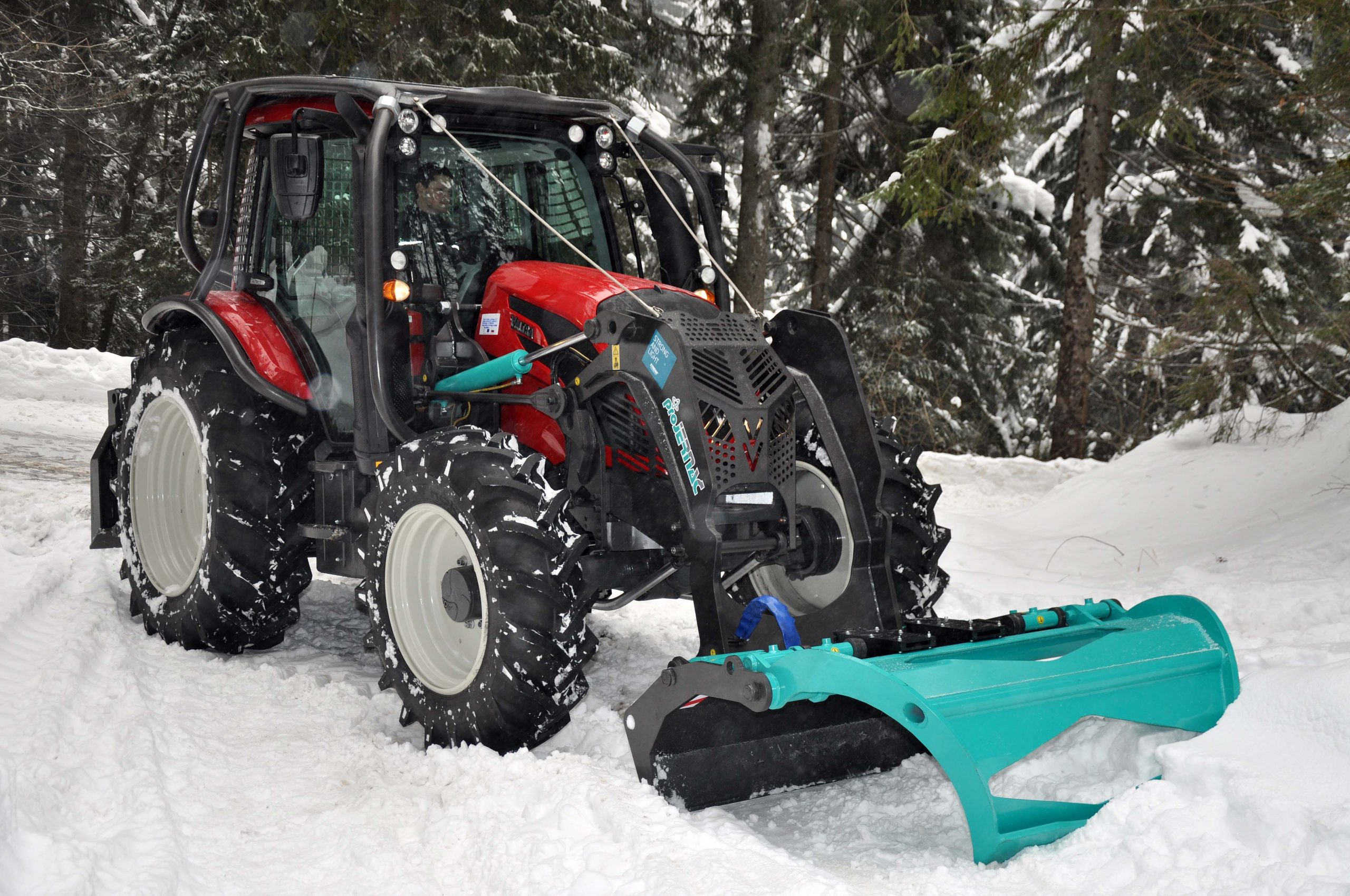

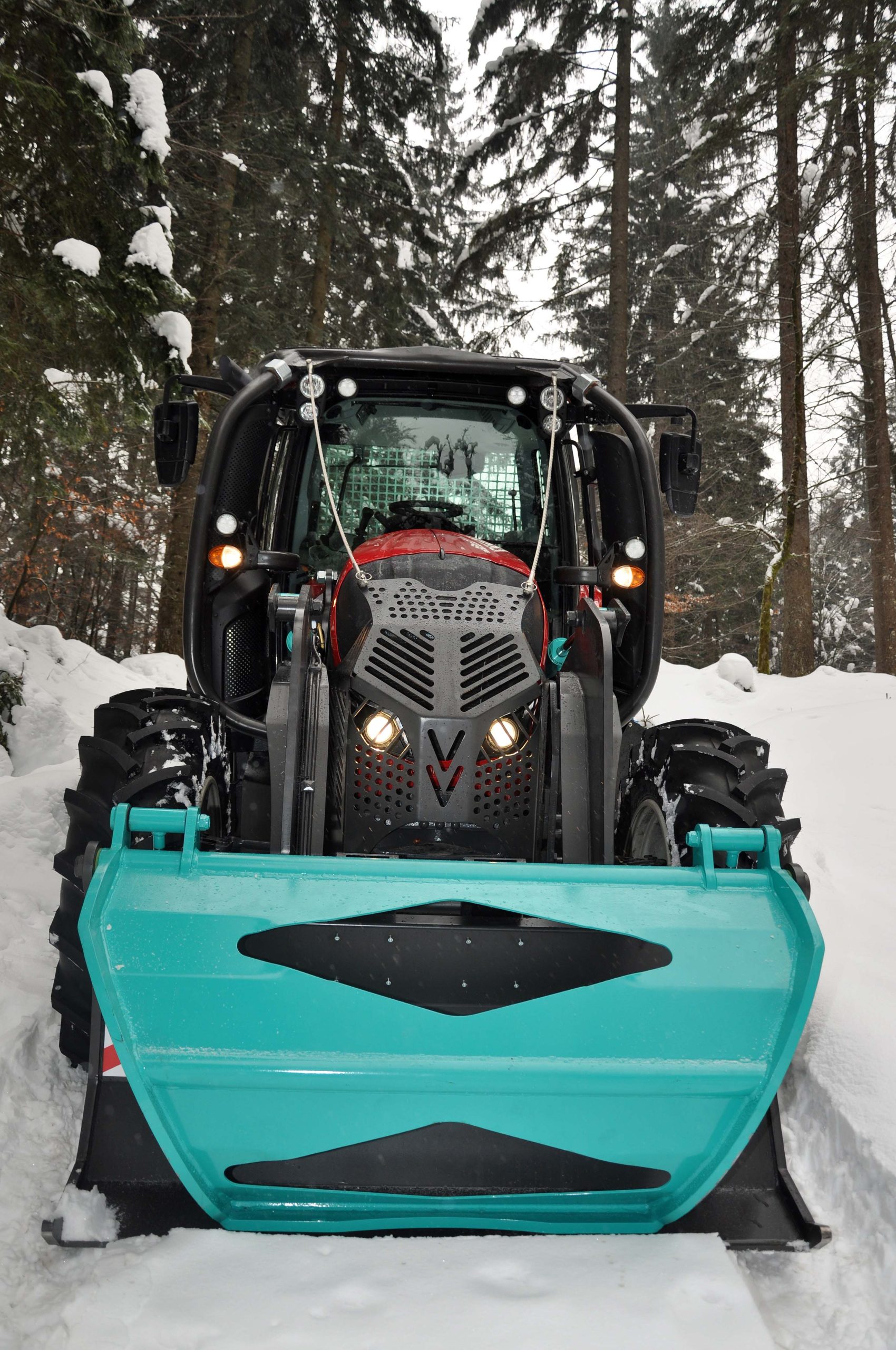

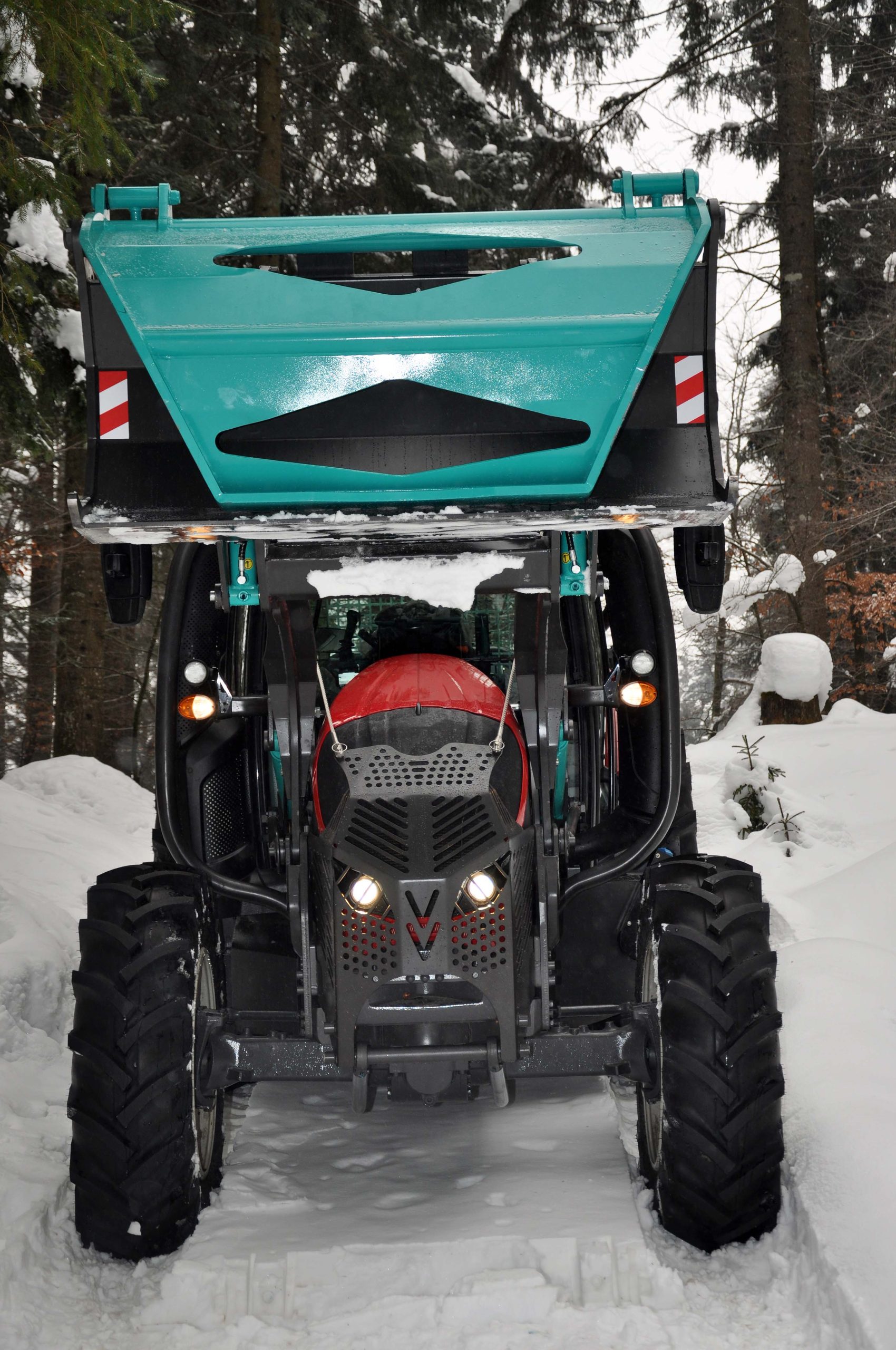

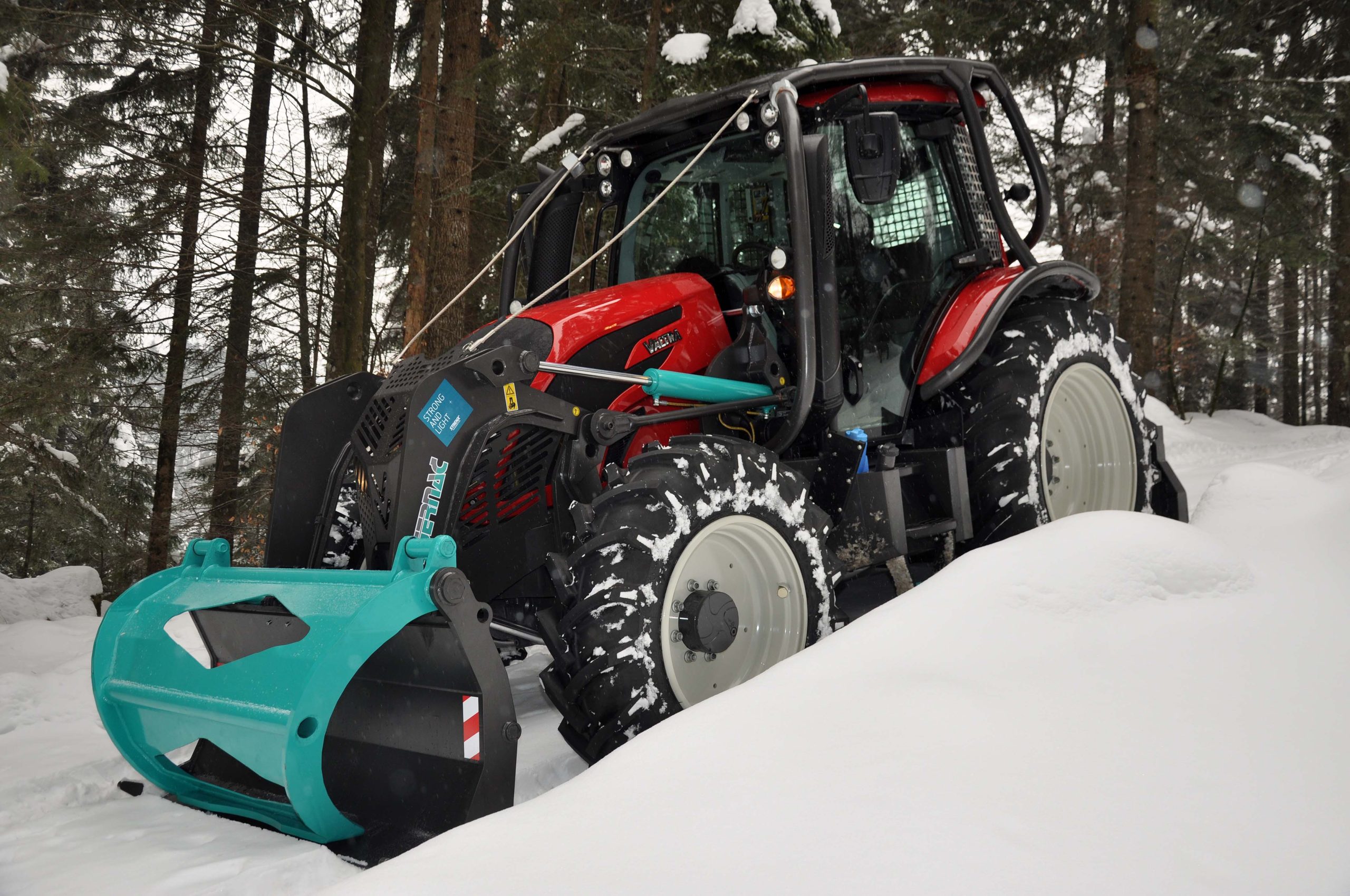

– front springboard, width 1800mm and lift height 1200mm, with tilts and pliers

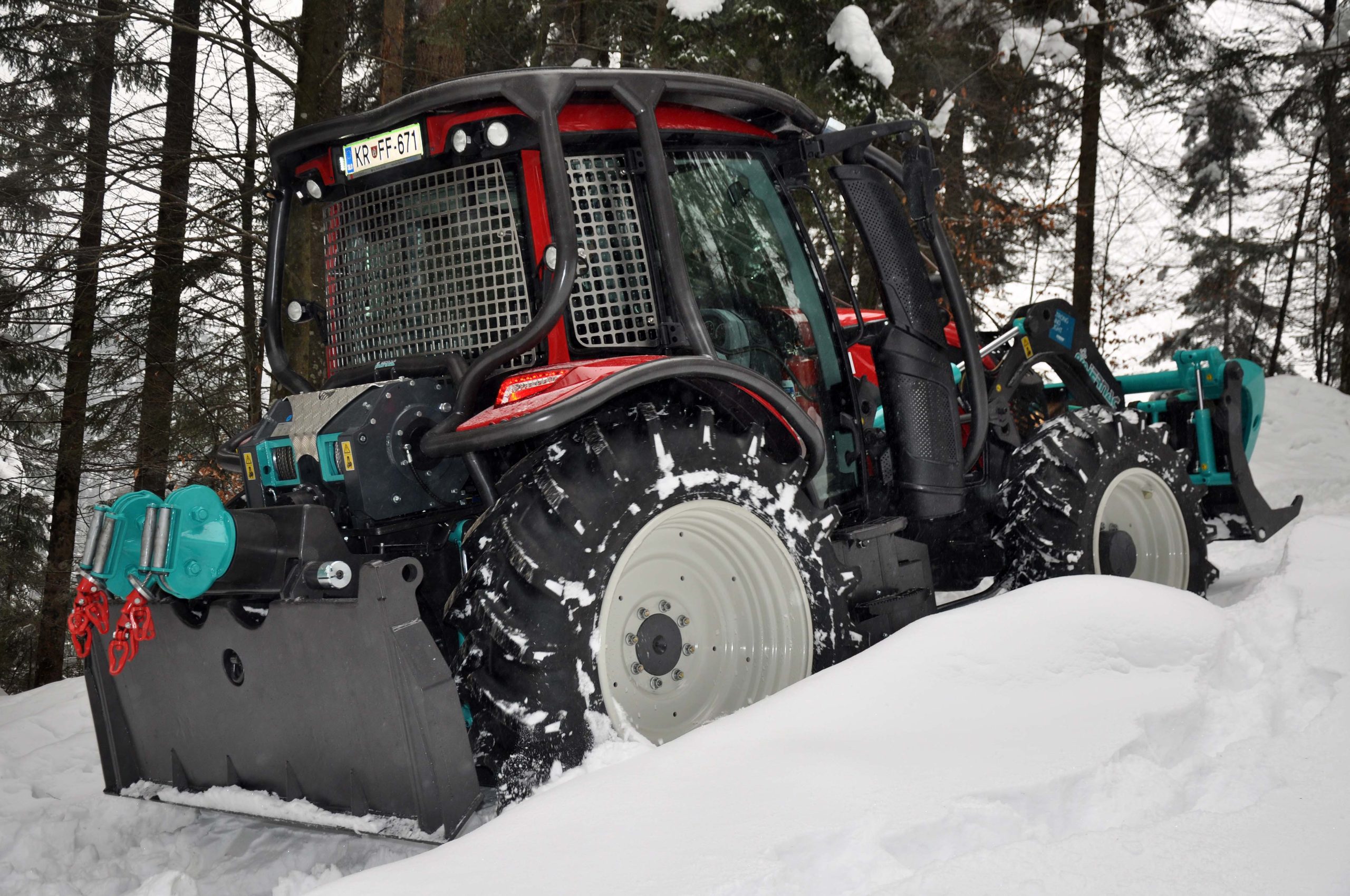

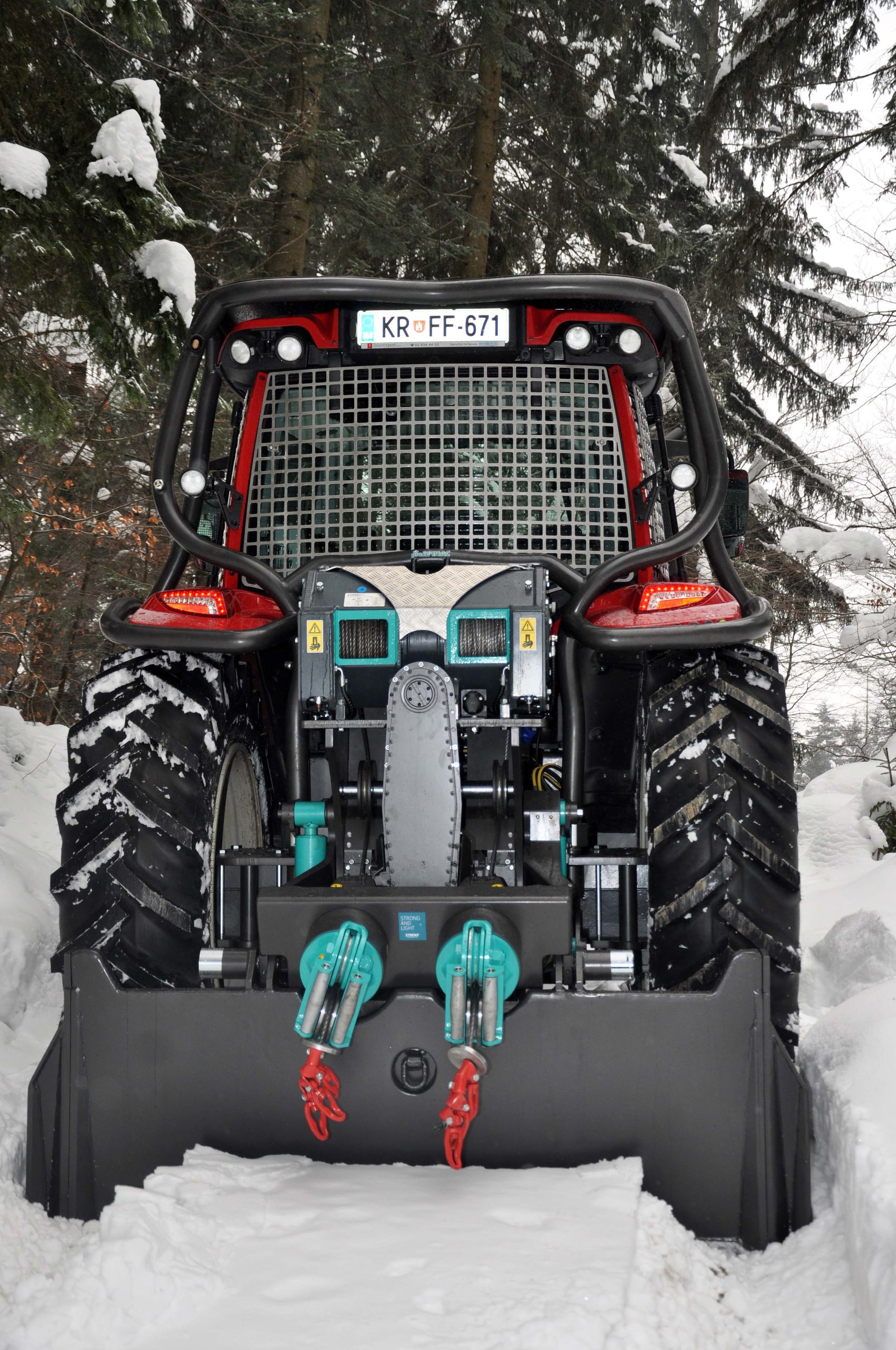

– rear hitch board, width 2320mm with directional pulleys and its own winding device
– chainsaw holder
– cant hook and axe carrier
– built-in two-drum winch with constant tractive force 2x75kN
– proportional hydraulic valves controlled by a mini-joystick
– separate hydraulic system for propulsion of winding device
– hydraulic valves of our winding device for keeping the braided cable tension while unwinding and winding the braided cable
– control of the raising and lowering of the rear hitch board with buttons outside the cabin and via remote control
– weight 9980kg
